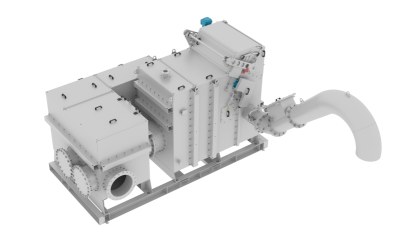

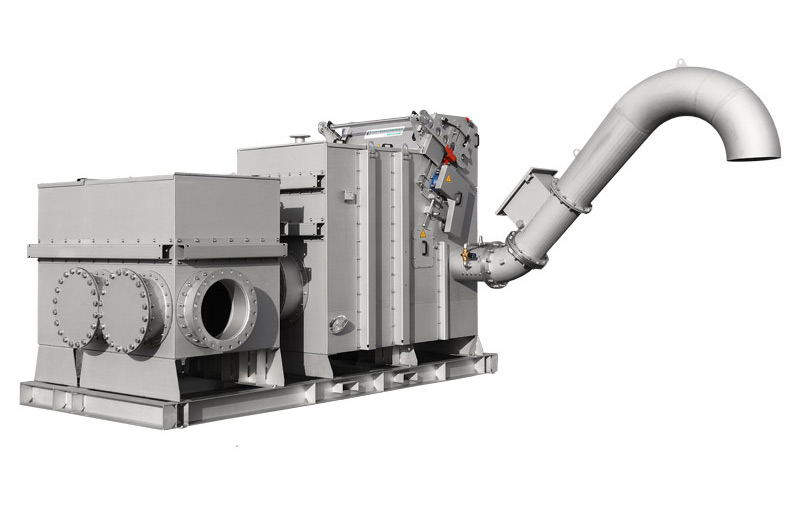

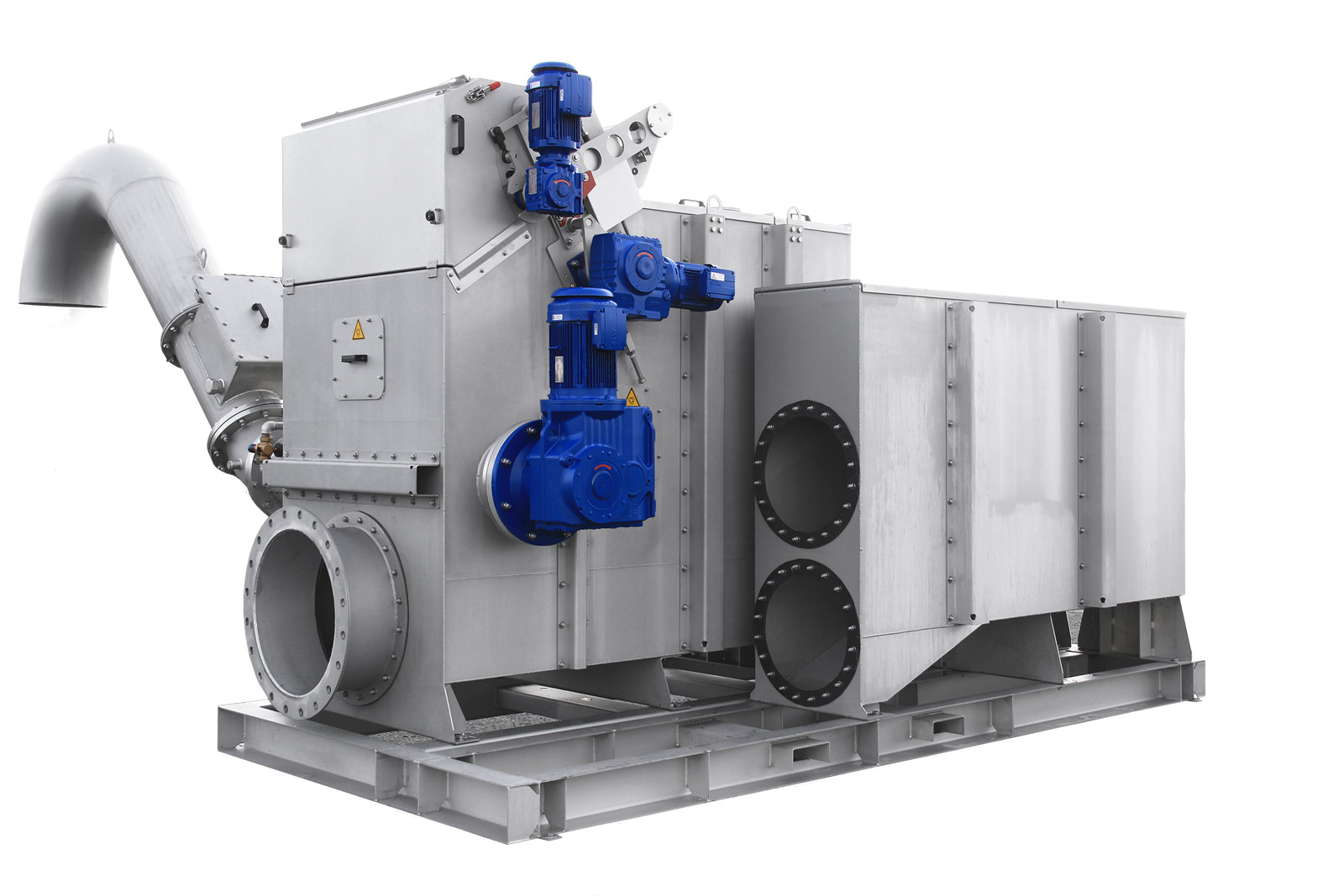

Mobile compact screen from FSM Frankenberger
Mobile compact screen from FSM Frankenberger
The new, mobile compact screen from FSM Frankenberger with a capacity of up to 400 l/s makes it possible to channel the wastewater produced during conversion work or inspections via a mobile screen.
This means that this work can be carried out without having to consider operational requirements. But without compromising on cleaning performance
Your advantages when using a rental screen von FSM Frankenberger
-
Filter screen and perforated plate
screen 6 mm, from FSM
Frankenberger
Highest cleaning performance
• Integrated screenings washing press from FSM Frankenberger Washing out the organics and highest dry substance values
• Extremely compact design with integrated emergency circulation
Screen can be easily placed
during conversion work
• Full automation with automatic control and various interfaces for integration into the control system of the plant.
Features, Dimensions and Material
Features:
• Screenings washing press: SPW
300 with 1,300 mm feed hopper and a capacity of up to 5 m /h.3
• Emergency bypass in separate container with
coarse grating 50 mm
• Material version complete incl. frame INOX V2A
Dimensions/Material:
Capacity: up to 400 l/s
LWH in mm: 4,100/2,450
(with discharge tube 5,615)/2,810
Weight: 4,250 kg empty, 8,650 kg full
Connections: DN 600
Screen: Filter screen, perforated plate screen 6 mm, width 1,000 mm, 60° angle, high-flow design.
